Electric Hydraulic Clamshell Grab

ENBL MHSG series electro-hydraulic dual-scoop grabs are specially designed for handling high-density and large-volume materials, covering three major series: MHSG-2/3/4, suitable for material densities ranging from 2.8t/m³ to 1.0t/m³. With a dual-scoop symmetrical structure and intelligent hydraulic system, they achieve excellent performance of “fast grabbing, precise control, low consumption and durability”, and are widely used in port loading and unloading, heavy industry, energy mining and other scenarios.

The MHSG electric hydraulic clamshell grab is suitable for powdery and granular bulk materials such as fertilizer, grain, coal, mineral sand, river sand, and incineration ash. It is designed for use with overhead or gantry cranes.

Powered by its own integrated electro-hydraulic system, the grab performs opening and closing operations independently. This model integrates electrical, hydraulic, and mechanical design systems, offering high automation, energy efficiency, and superior digging and closing forces compared to rope-type grabs of the same specification.

Five Core Advantages

• Dual-scoop collaborative design: The symmetrical structure ensures balanced grabbing, with a material residue rate of <5%.
• Intelligent hydraulic system: Closed-loop control technology enables adjustable opening and closing speeds, with a response time of <0.5 seconds.
• Upgraded durability: Key components are made of heat-treated alloy steel, extending wear resistance life by 30%.
• Global applicability: Supports dual voltage (380V/440V) and dual frequency (50Hz/60Hz) configurations.
• Customization services: Can adjust scoop arc according to customer needs, and install weighing sensors or anti-corrosion coatings.

MHSG-2 Series – Extra Heavy-Duty Two-Blade Grab Bucket

• Material Suitability: Density ≤2.8 t/m³ (e.g., iron ore, steel slag, heavy machinery parts)
• Capacity: 0.63-12.5 m³ | Weight: 980-14,500 kg (for ultra-heavy duty operations)
• Motor power: 8.5-55 kW (dual voltage 380V/440V) | Closing time: 8.0-20.0 sec
• Standard high-strength wear-resistant steel | Lifting capacity: A26/8t to A63/52t
  Typical Applications: Scrap handling in steel plants, raw ore loading in mines

MHSG-3 Series – Medium-Heavy Duty Universal Grab Bucket

• Material Suitability: Density ≤1.8 t/m³ (e.g., coal, ores, construction aggregates)
• Capacity: 1.0-18.0 m³ | Weight: 1,220-14,800 kg (optimized efficiency & energy consumption)
• Motor power: 8.5-55 kW | Closing time: 8.0-20.0 sec | Compatible with 440V/60Hz power grid
• Optimized two-blade design (20% larger grabbing area) for continuous operation
  Typical Applications: Bulk cargo handling at ports, raw material transfer at concrete mixing plants

MHSG-4 Series – Light-Duty High-Capacity Grab Bucket

• Material Suitability: Density ≤1.0 t/m³ (e.g., grains, biomass fuel, waste)
• Capacity: 5.0-26.0 m³ | Weight: 3,670-19,100 kg (max. capacity up to 26m³)
• Motor power: 18.5-55 kW | Dual empty/loaded mode (15% energy saving)
• Wide-blade design with leak-proof structure (meets environmental standards)
  Typical Applications: Grain storage, biomass power plants, waste recycling

Table of Key Performance Comparison

Cases

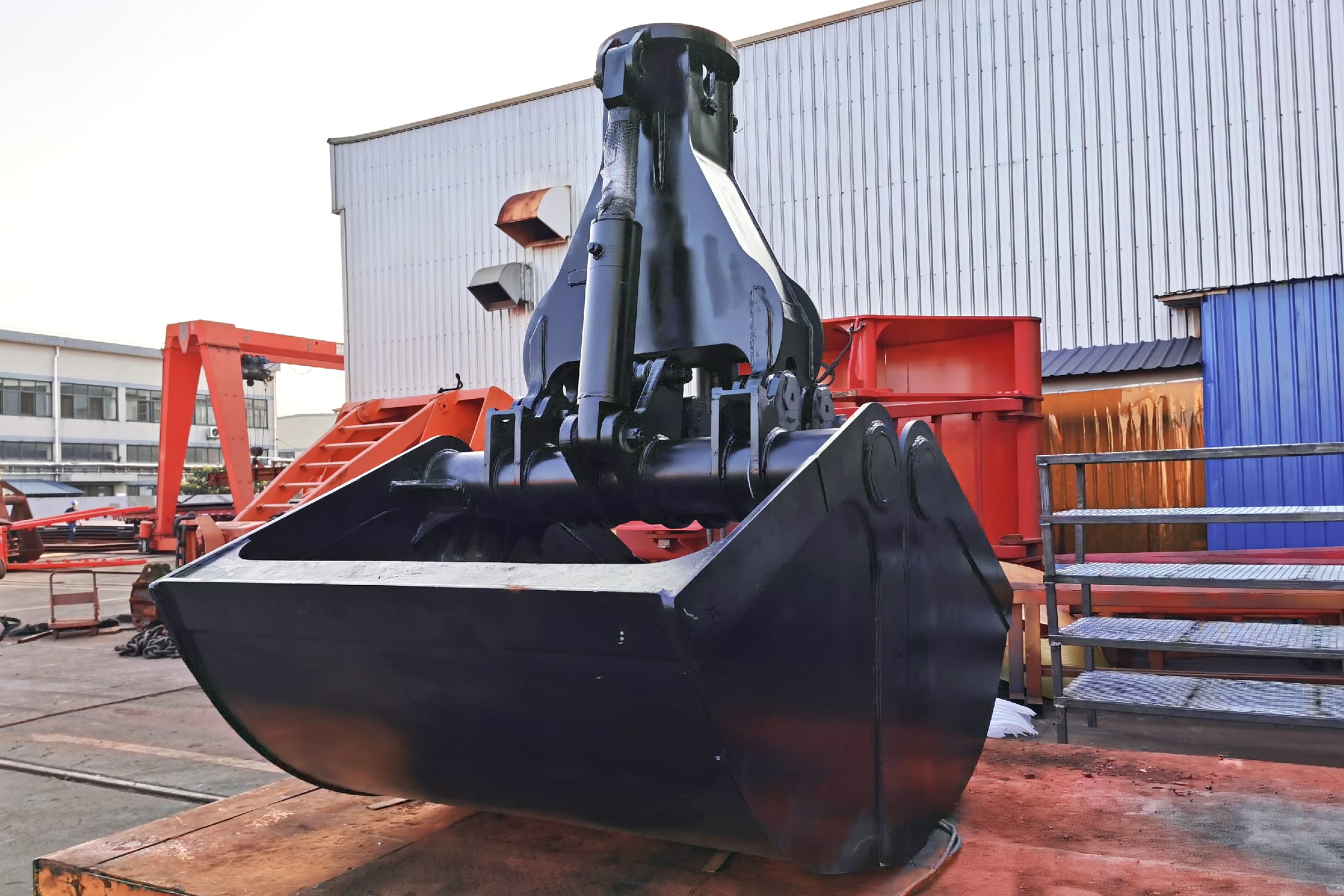

MHSG-3 Engineering Hydraulic Grab Bucket

• Specially designed for handling bulk materials (coal, sand, mineral ores) with density of 1.0-2.0 t/m³.
• Bucket Capacity: 1.0-8.0 m³
• Compatibility: Matches various engineering machinery equipment
• Model Shown: HSG4000-3
• Project User: SANY Heavy Industry

MHSG-5 Electric Hydraulic Double-Blade Grab Bucket

• Specially engineered for municipal solid waste (0.5-1.0 t/m³), primarily used in co-processing projects for cement kilns, featuring enhanced bottom-cleaning and corner-working capabilities.
• Bucket Capacity: 5.0-12.0 m³
• Model Shown: MHSG6300-5
• Project User: Huaxin Environmental Engineering Co., Ltd. (Chibi Branch)
